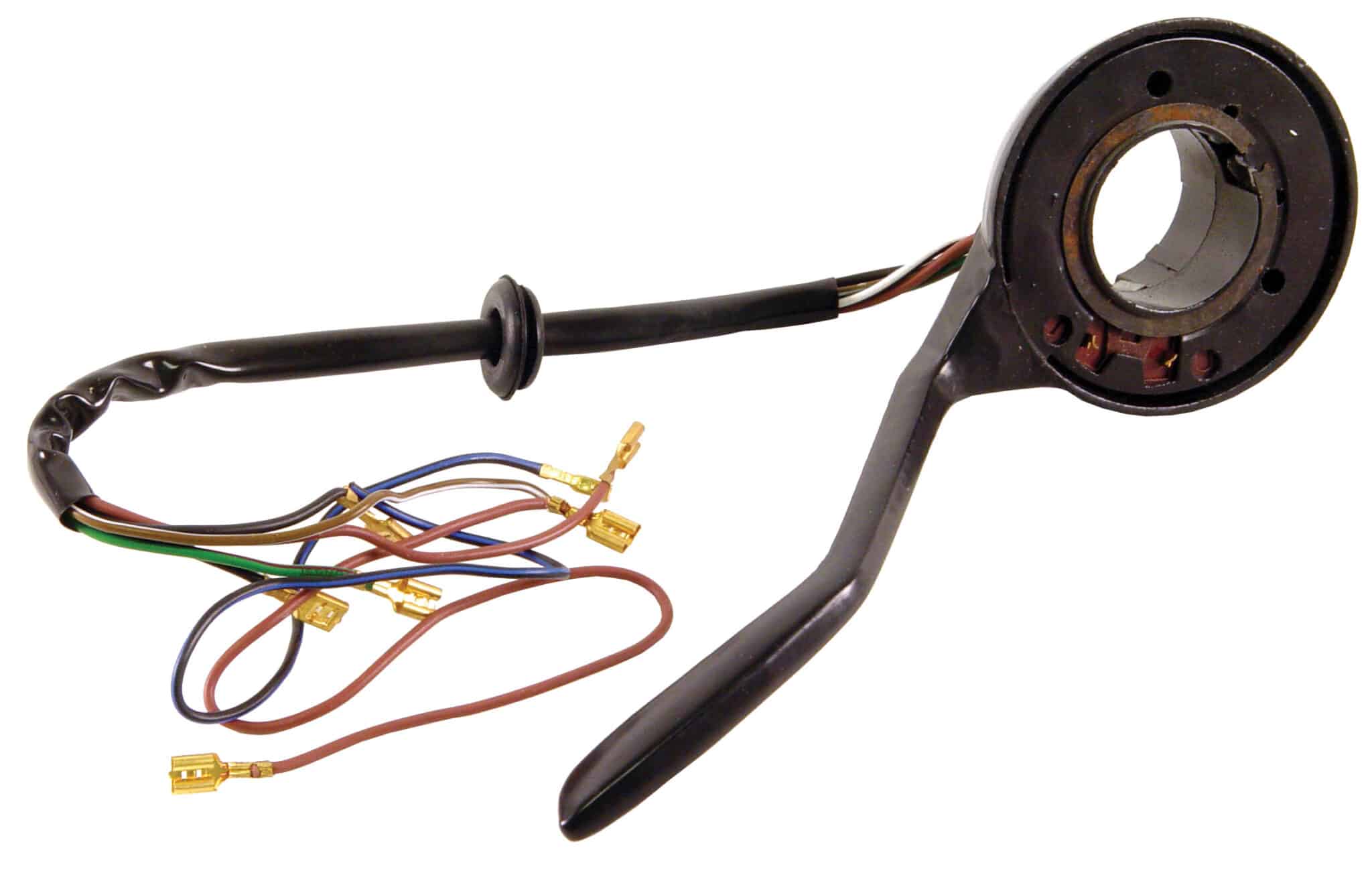

Turn Signal Switch, 66/67 Economy

Available Only in Black The VW Turn Signal Switch wiring is a very simple circuit. even with the 66-67 Switches controlling the Headlight Relay. The designations for the wires are:

Black White Green Wire: 49a OR “L” Terminal on Flasher Relay

Black wire with White Stripe: Power to left turn signals

Black wire with Green Stripe: Power to right turn signals

Brown wire with Jumper: Ground Terminal on Body

Brown wire with White Stripe: “S” Terminal on Headlight Relay

EXCELLENT CHOICE FOR DUNE BUGGY & KIT CARS
